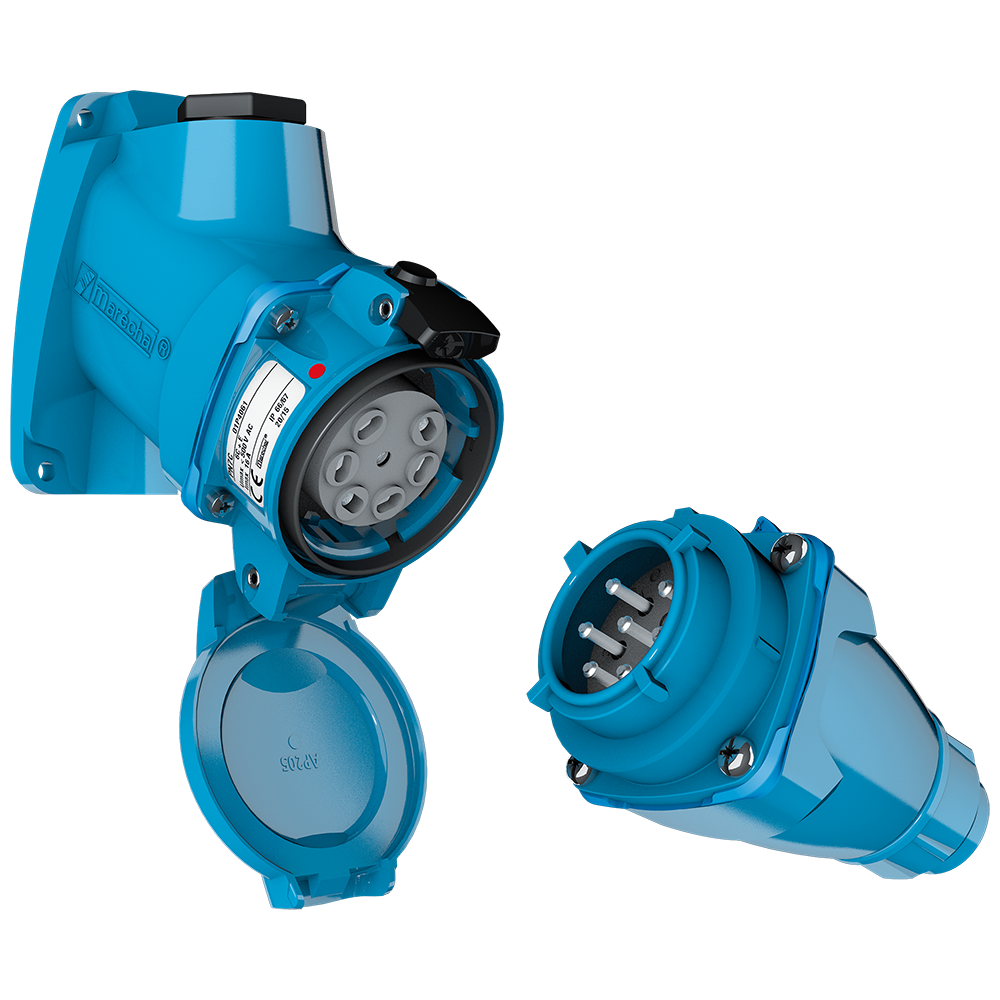

CONNECTEURS MULTICONTACTS 7 Contacts – 25 A – 500 V – IP66/IP67 – IK09 – POLY/ MÉTAL
Connecteurs multicontacts poly ou métal, compacts et étanches, qui permettent à la fois la mise en oeuvre de l’alimentation électrique et le passage d’informations et de signaux bas niveaux.
Points forts
- Connecteur 7 contacts
- IP66/IP67 automatique
- Enveloppe poly ou métal, IK09
- T °C : -40 °C / + 60 °C
Caractéristiques
Télécharger le catalogueNormes
- Directives Européenne Basse Tension et RoHS (apposition du marquage CE), Règlement Européen REACH.
- Normes IEC/EN 61984, UL 1682 (USA), CSA C22.2 N° 182.1 (Canada).
- Certififé par les organismes suivants : TR CU (Russie), UL (USA), CSA (Canada).
- Facilitent la conformité des machines électriques à la Directive Européenne « Machine » en matière de dispositif de sectionnement.
