MULTICONTACT CONNECTORS 10 A – 440 V – IP66/IP67 – IK09 – METAL – ZONE 1-21, 2-22

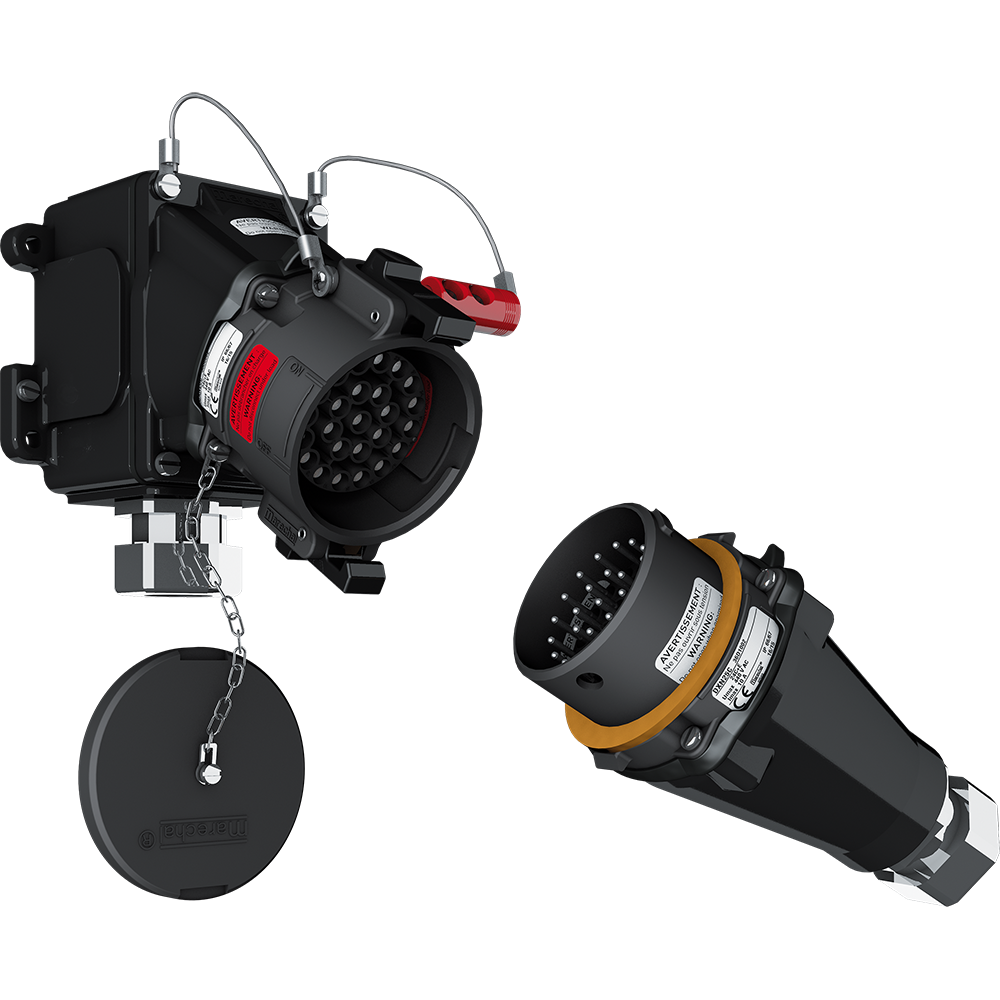

DXN25C ATEX multicontact connector, 25 contacts 10 A – 440 V, metal, for zones 1, 2, 21 and 22: Ex e IIC Gb / Ex ia-ib IIC, IP66/IP67, IK09, -40 °C / +60 °C. Power and low-level signals in explosive atmospheres.
Highlights
- 25 contacts connect
- Ex II 2 G D Ex e IIC Gb / Ex ia or ib IIC Gb, Ex tb IIIC Db
- Automatic IP66/IP67
- T °C : -40 °C / + 60 °C
Characteristics
Download the catalogueStandards
- European ATEX Directives (CE and Ex symbol marking), RoHS (CE marking), European REACH Regulation.
- Standards IEC EN 60079-0, IEC/EN 60079-7, IEC/EN 60079-11, IEC/EN 60079-31.
- Certified by the following organisations: LCIE (Europe: ATEX and International: IECEx), NANIO (Russia: TR CU), KGS (South Korea).
