A unique concept
Rotating and disconnectable
EVO is a manually-operated rotating and disconnectable switch-disconnector, with 2 to 6 poles, certified by LCIE BUREAU VERITAS.
It is intended for closing and breaking on load and for isolating a low-voltage electrical circuit, in accordance with standard IEC/EN 60947-3.
Its robust mechanism enables opening and disconnection even in the event of an overcurrent or overvoltage defect (AC-23/AC-3).
Better continuity of service
- Does not require 30 mA residual current protection: no nuisance tripping.
- Reduced and simplified maintenance.
- Shorter production downtimes.
Makes your work safer and simpler:

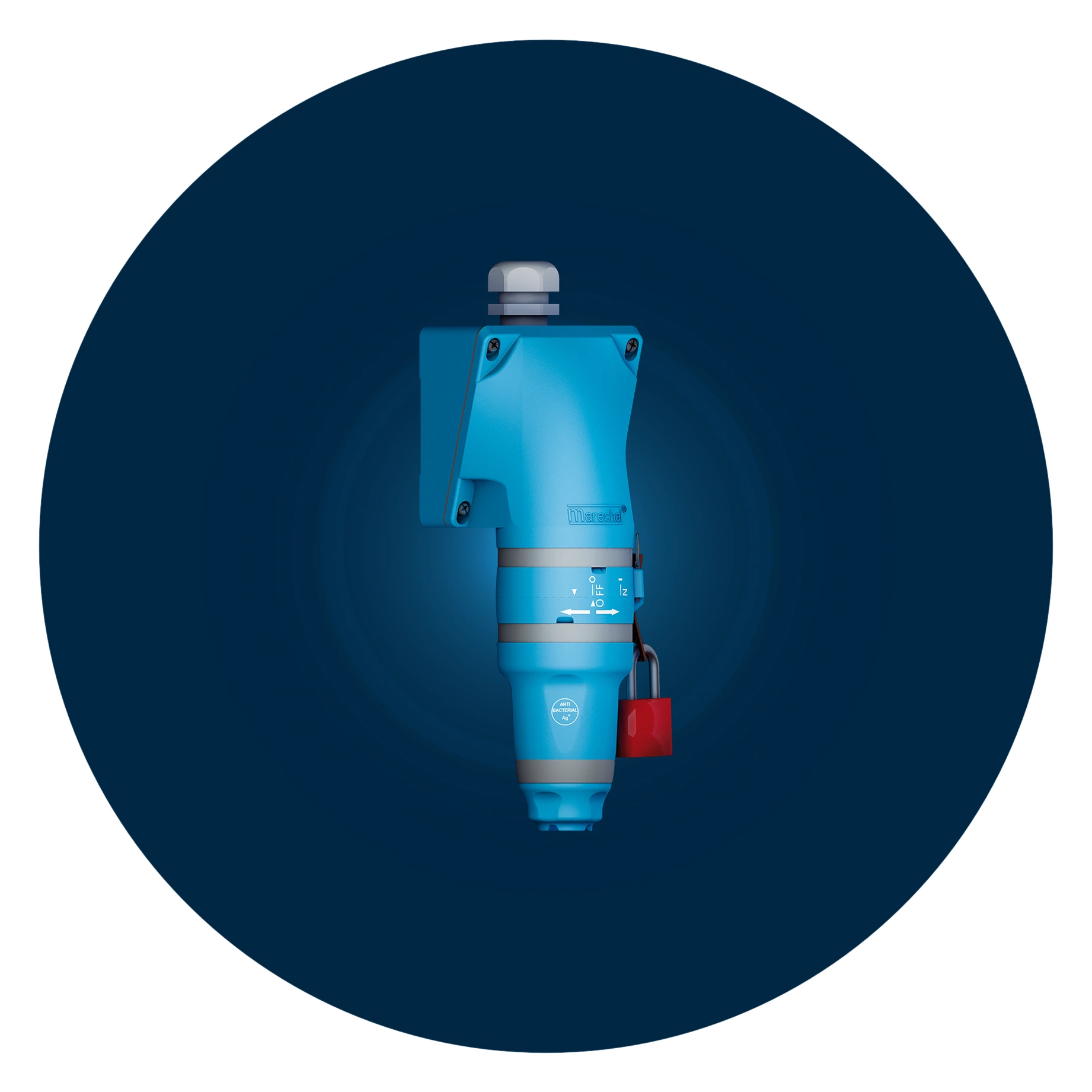

For maintenance or equipment replacement, EVO can be separated into two parts and padlocked.
Once separated, EVO has an IP4X/IPXXD protection rating.
There is therefore no need for intervention by qualified personnel or for protective procedures.
A patented design that is unique in the world.
-
Double break AC-22A/AC-23A (18.5kW)
AC-3 ( 11kW) -
IP4X safety shutter
Inaccessible live contacts -
Contacts with silver alloy caps (anti-corrosion treatment)
-
Automatically sealed to IP66/IP67/IP69
In ON and OFF positions -
Glass-fibre reinforced
poly casing -
Cage terminal improves
conductivity and resistance
to vibration -
Colour-coded terminals
1, 2, 3, 4/N, 5, 6 -
Ergonomic handle
Screwless installation -
Protective shell
EVO offers high flexibility in the most demanding applications in terms of hygiene, robustness and reliability
On-load disconnection

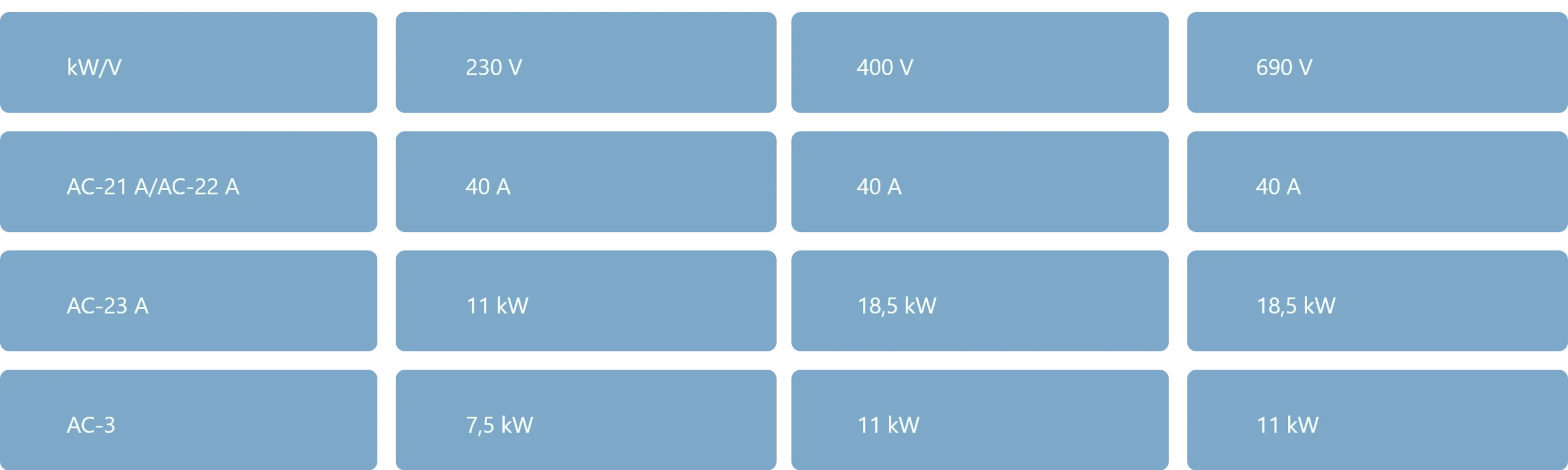

Certified by LCIE BUREAU VERITAS in accordance with standards IEC/EN 60947-1 and 60947-3, EVO is designed for closing/breaking as well as isolating any low voltage electrical circuit, whether resistive (AC-21 A)
or mixed resistive/inductive (AC-22 A), inductive (AC-23 A), or requiring closing/breaking on load (AC-3) of electric motors, according to standard IEC/ EN 60947-3.
Visible break
Visible break, fully visible
EVO makes your work safer, simpler and shorter. It features :
– Fully visible: information clearly indicated on the device casing;
– Visible: EVO is designed to be safely separated into two parts without the intervention of a qualified electrician.
EVO can be used intensively as a switch
ON” ↔ ‘OFF’ > 15,000 cycles.
Fully visible break
Visible break, fully visible
EVO makes your work safer, simpler and shorter. It features :
– Fully visible: information clearly indicated on the device casing;
– Visible: EVO is designed to be safely separated into two parts without the intervention of a qualified electrician.
EVO can be used intensively as a switch
ON” ↔ ‘OFF’ > 15,000 cycles.
Visible break, fully visible
EVO makes your work safer, simpler and shorter. It features :
– Fully visible: information clearly indicated on the device casing;
– Visible: EVO is designed to be safely separated into two parts without the intervention of a qualified electrician.
EVO can be used intensively as a switch
ON” ↔ ‘OFF’ > 15,000 cycles.
Browse our expert sheet
Installation and use
A versatile installation
EVO takes up very little space, has no visible screws and no retention zone. It can be installed either on an electrical box or on a wall-mounted surface-mounted box, at any angle. The EVO switch-disconnector saves space in your installations thanks to its compact size.
Lockout:
instant visibility and safety
for users
After a simple rotation, EVO is in lockout mode while retaining its sealing properties. In this position, its disconnection function makes it possible to work safely on the load side and to comply with Lock out Tagout procedures.
