Hazardous area

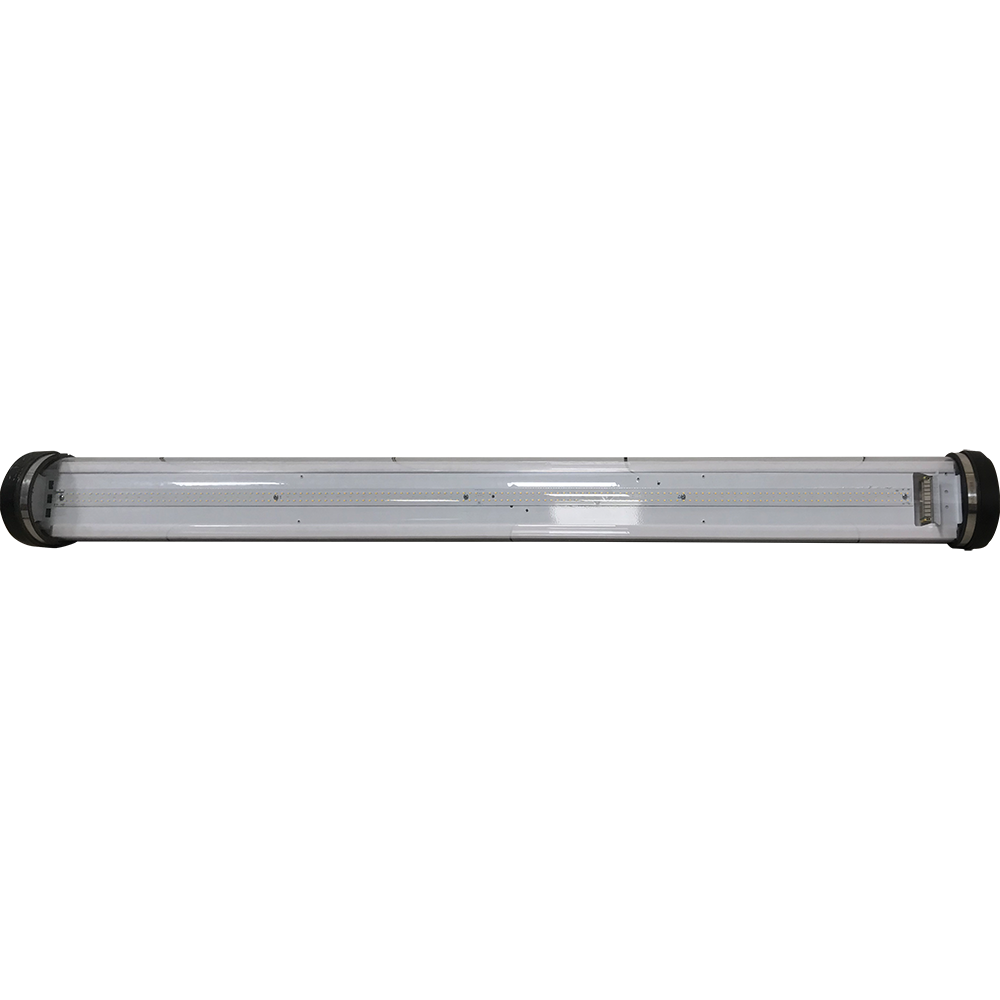

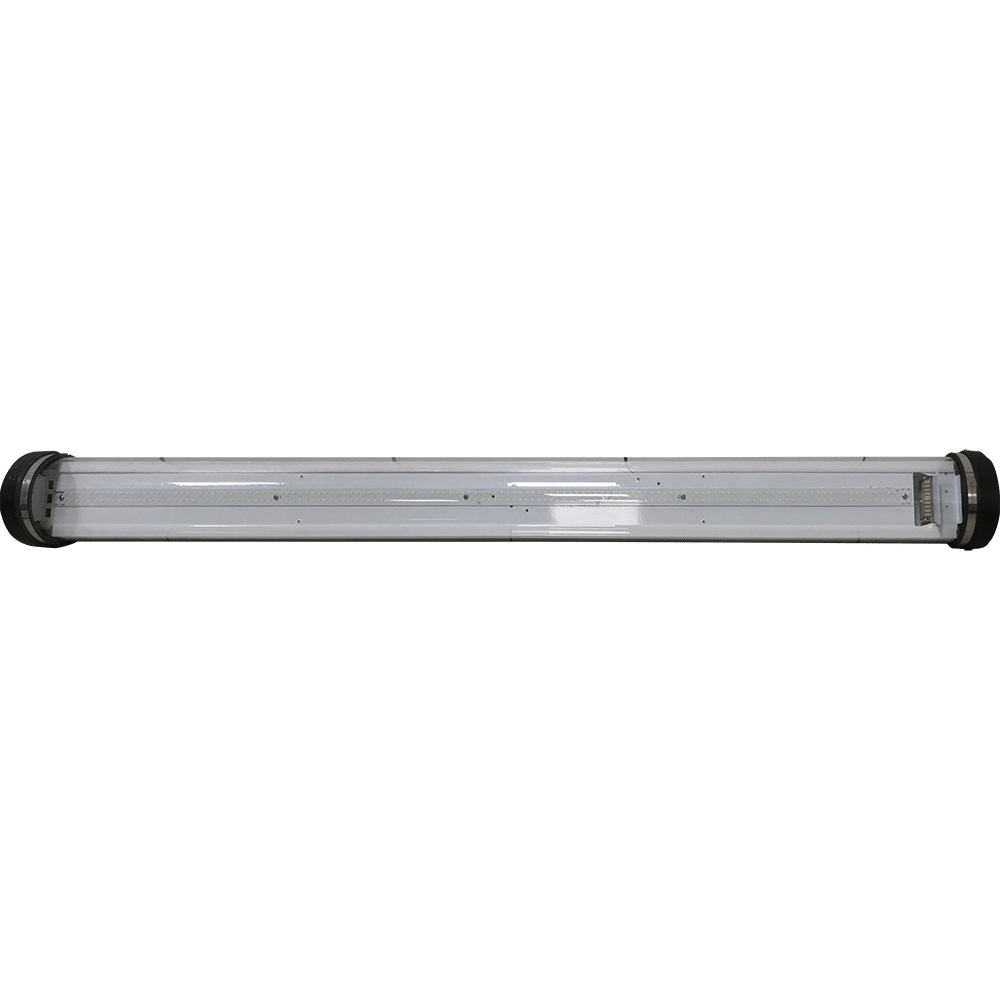

LINEAR LED LIGHTING – IP66 – ALUMINIUM/POLY END CAPS Zone 2-22
EVF2 Zone 2-22
‘A range of polycarbonate LED linear lighting fittings in GRP or copper-free aluminium for use in potentially explosive atmospheres in zones 1 & 2 (gas), 21 & 22 (dust).
These lighting fixtures are ideally designed to provide uniform illumination of installations.’
Highlights
- Fitted with LEDs
- II 3G Ex ec IIC T4 Gc (normal service), II 3D Ex tc IIIC T85°C Dc
- End-cups in GRP or copper-free aluminium
- IP66 / IK10
Characteristics
Download the catalogueStandards
- European ATEX (CE and Ex symbol marking ), EMC, Low Voltage, RoHS and WEEE Directives (CE marking).
- Standards IEC EN 60079-0, IEC/EN 60079-1, IEC EN 60079-7, IEC/EN 60079-18, IEC/EN 60079-31, IEC/EN 60598-1 and IEC/EN 60598-2-1.
- Certified by the following organisations: FIDITAS (Europe: ATEX, and International: IECEx)
