Hazardous area

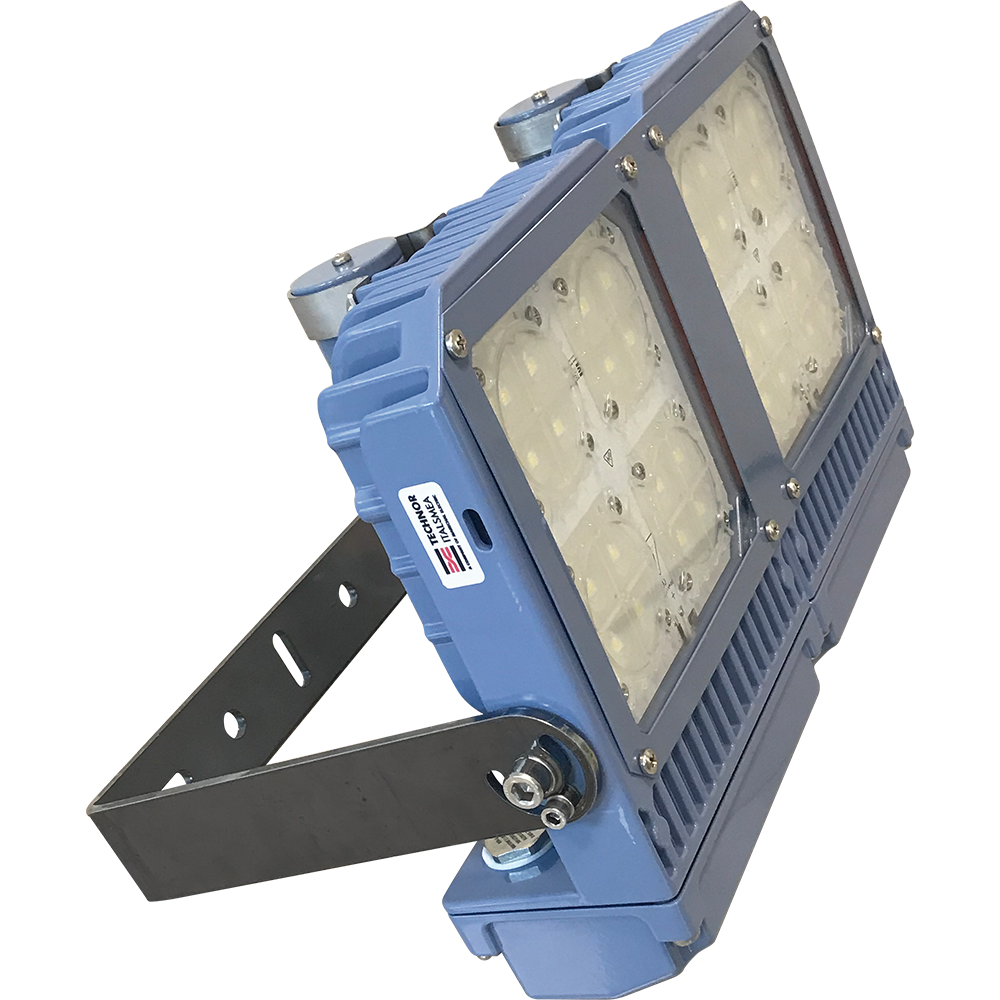

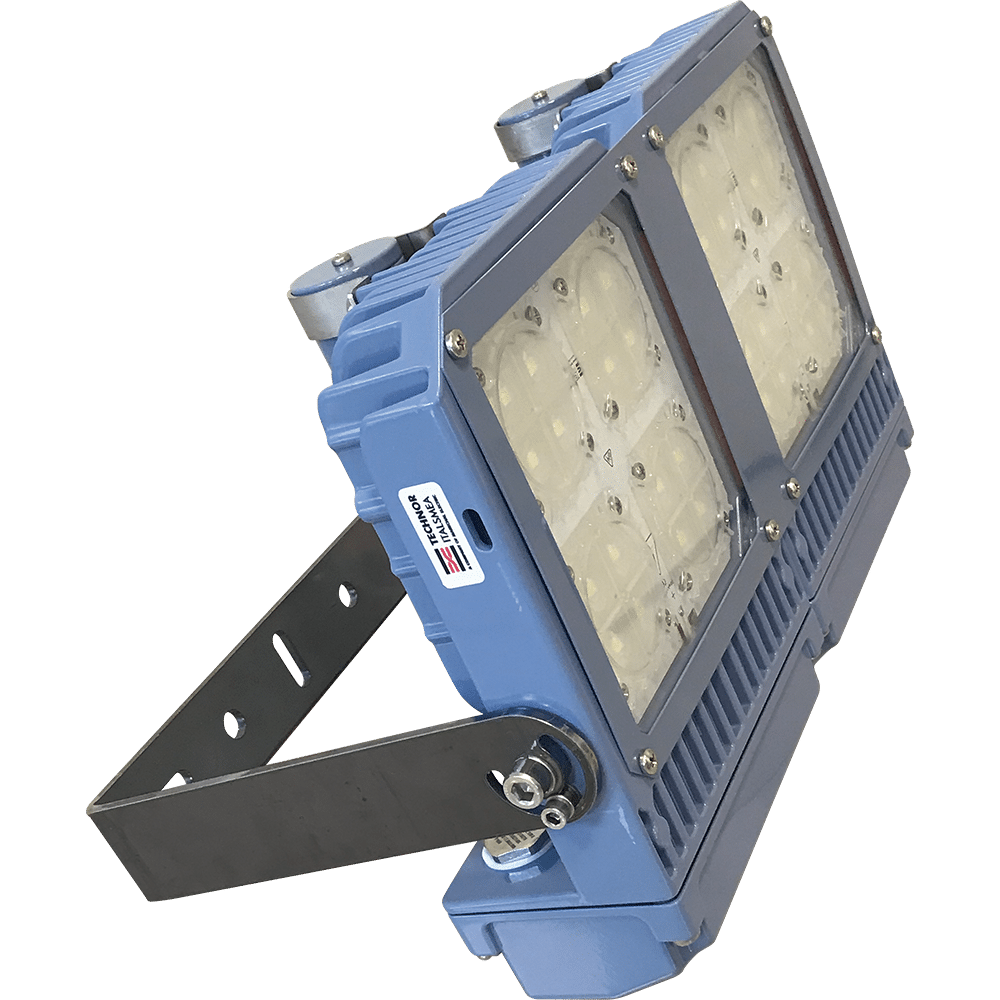

LED FLOODLIGHT – IP66 – ALUMINIUM – ZONE 1-21
FL1 Zone 1-21
TECHNOR FL1 ATEX LED floodlight in copper-free aluminium for explosive atmospheres zones 1, 2, 21 and 22: Ex db eb mb IIC T4, modular up to 4 units, emergency version, IP66. Wall, ceiling or pole mounting to light your classified industrial areas.
Highlights
- II 2G Ex db eb mb IIC T4 Gb, II 2D Ex mb tb IIIC T90°C Db
- Modular up to 4 units
- Back-up version available (2 units or more)
- Light intensity up to 32,000 lm
Characteristics
Download the catalogueStandards
- European ATEX (CE and Ex symbol marking ), EMC, Low Voltage, RoHS and WEEE Directives (CE marking).
- Standards IEC EN 60079-0, IEC/EN 60079-1, IEC EN 60079-7, IEC/EN 60079-18, IEC/EN 60079-31, IEC/EN 60598-1 and IEC/EN 60598-2-5.
- Certified by the following organisations INERIS (Europe: ATEX, and International: IECEx), SERCONS (Russie : TR CU)
