Increased safety BOXES, empty or with terminals – IIC – IP66/IP67 – IK10 – STAINLESS STEEL – Zone 1-21, 2-22

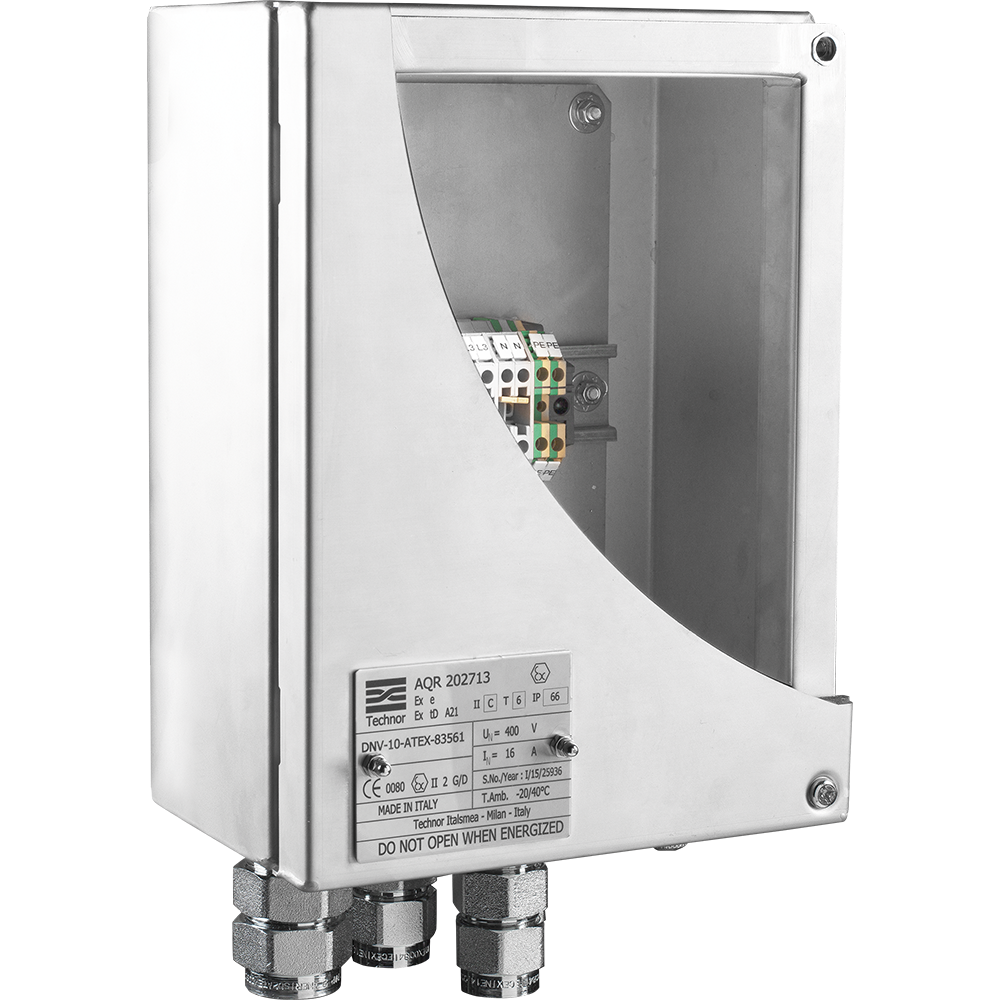

These customised TECHNOR® enclosures in AISI 316 L stainless steel, designed for explosive atmospheres in zones 1 & 2 (gases), 21 & 22 (dusts), are available in empty enclosure configuration (component certificate) or junction box configuration (equipment certificate).
These enclosures are suitable for ON/OFF-SHORE installations, in the presence of chemical agents and in any other highly corrosive environment.
Highlights
- Intrinsic safety terminals can be fitted
- Full customisation from 100x120x100 mm to 910x1140x500 mm
- IP66/IP67
- High-temperature variant: internal temperature up to 130°C
Characteristics
Download the catalogueStandards
- European ATEX ( CE and Ex symbol marking ), EMC, Low Voltage, RoHS and WEEE Directives (CE marking).
- Standards IEC EN 60079-0, IEC/EN 60079-1, IEC EN 60079-7, IEC/EN 60079-11, IEC/EN 60079-18, IEC/EN 60079-31.
- Standards UL 508A (USA) and CSA C22.2 N°14-13 (Canada).
- Certified by the following organisations: FIDITAS (Europe: ATEX, and International: IECEx), SERCONS (Russia: TR CU), UL (USA), KTL (South Korea: KCs), PESO (India), SGS (United Arab Emirates: ECAS-Ex)
