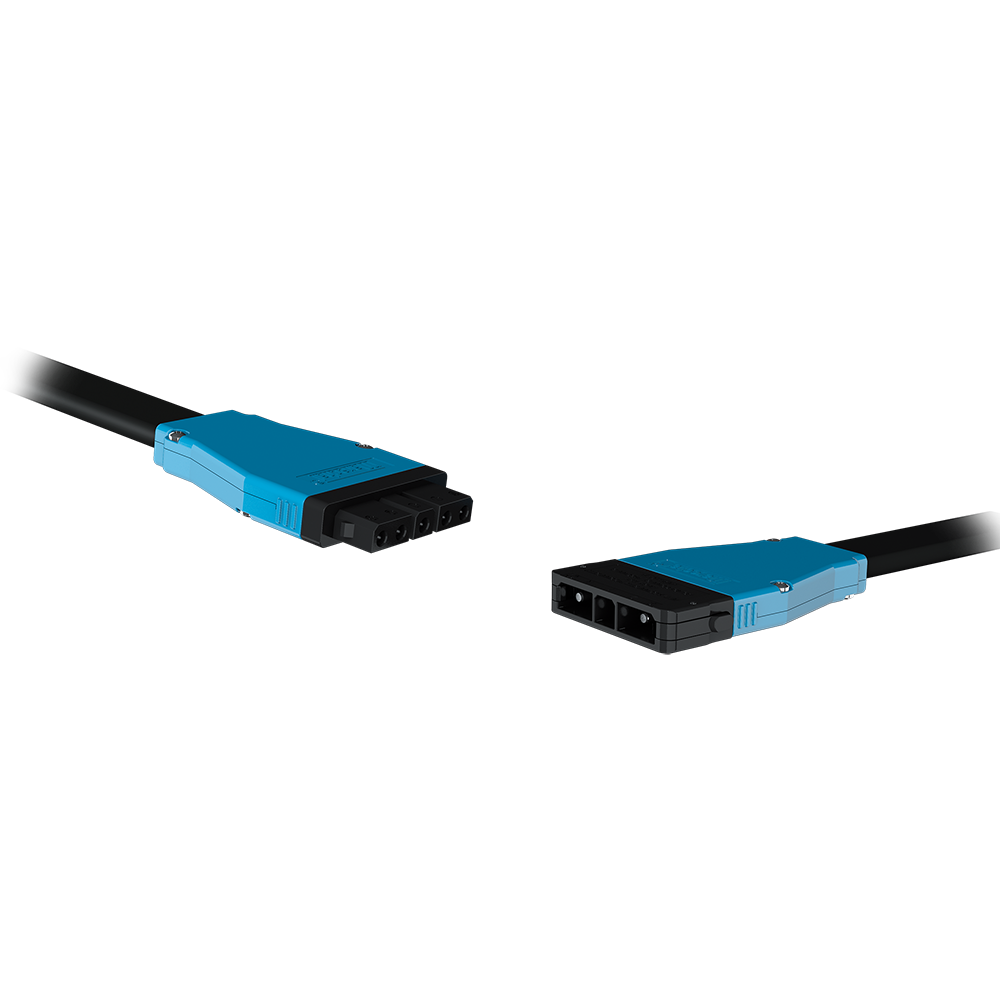

FLAT CONNECTOR 50 A – 500 V – IP54 – IK09 – POLY
A safe, compact and user-friendly flat connector for industrial applications. Its compact size (19mm thick) and mechanical strength (IK09) make it particularly suitable for flat cables between 26mm and 40mm wide and between 7mm and 11mm high.
Highlights
- For flat cables
- Poly casing, IK09
- Automatic IP54
- T °C : -40 °C / +60 °C
Characteristics
Download the catalogueStandards
- European Low Voltage and RoHS Directives (CE marking), European REACH Regulation.
- IEC/EN 61984 standard (essential safety requirements).
- Ensures that electrical machines comply with the European 'Machinery' Directive in respect of disconnecting switches.
