DECONTACTOR™ 32 A – 750 V – IP66/IP67 – IK09 – GRP – ZONE 1-21

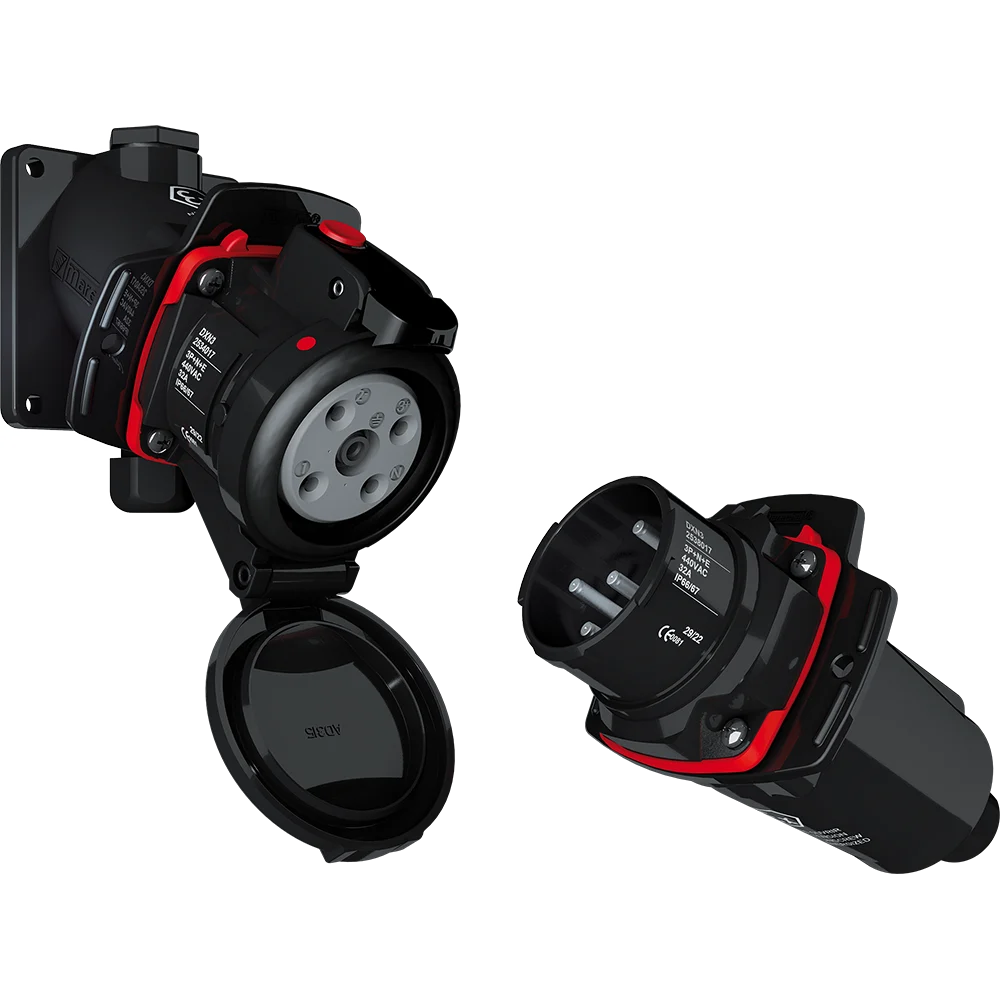

DECONTACTOR™ DXN3 32 A – 750 V ATEX switched socket-outlet with built-in load breaking for explosive atmospheres zones 1, 2, 21 and 22: Ex db eb IIC / Ex tb IIIC, IP66/IP67, poly housing, IK09.
Highlights
- Built-in breaking capacity AC-22
- Ex II 2 G D Ex db eb IIC, Ex tb IIIC
- Automatic IP66/IP67
- T °C : -40 °C / +60 °C
Characteristics
Download the catalogueStandards
- European ATEX Directives (CE and Ex symbol marking), RoHS (CE marking), European REACH Regulation.
- Standards IEC EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7, IEC/EN 60079-31, IEC/EN 60309-1, IEC/EN 60309-4.
- Certified by the following organisations: EXPLOLABS (South Africa: SANS), KGS (South Korea), CMLEx (Japan), Bureau Veritas Marine, LCIE (Europe: ATEX and International: IECEx), NANIO (Russia: TR CU), CSA (Canada & USA), Bureau Veritas Brazil (Brazil: INMETRO), SGBP (Singapore).
- Ensures that electrical machines comply with the European Machinery Directive in respect of disconnecting switches and with EN 60204-1: Safety of Machinery - Electrical equipment of machines.
- Ensures that electrical installations comply with the decrees of 30 August 2010, 22 September 2010 and the decrees implementing the French Labour Code relating to health and safety at work when using electrical installations.
- Ensures that electrical installations comply with national regulations on worker protection in Belgium, Spain and Italy.
- Ensures electrical installations comply with IEC/HD 60364 and NF C 15-100 electrical installation standards.
