DECONTACTOR™ 150 A – 1000 V – IP66/IP67/IP69 – IK09 – GRP/METAL

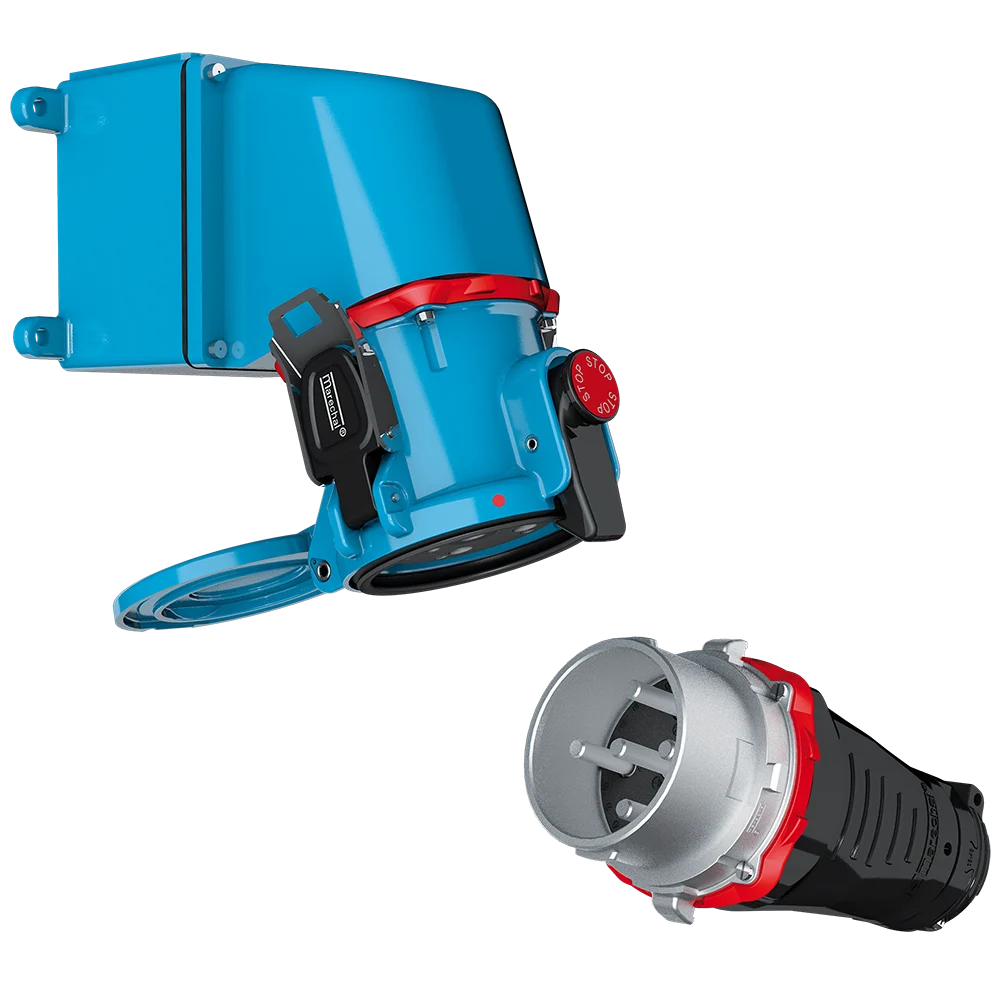

DECONTACTOR™ DS9 150 A switched industrial socket-outlet with built-in AC-22/AC-23 breaking capacity: IP66/IP67/IP69, poly or metal housing, up to 6 auxiliary contacts, electromagnetic compatibility (EMC). Safe connection and on-load disconnection for industrial equipment.
Highlights
- Built-in breaking capacity AC-22 and AC-23
- Automatic IP66/IP67/IP69
- Up to 6 auxiliary units
- Poly IK09 or metal IK10 casing
Characteristics
Download the catalogueStandards
- European Low Voltage and RoHS Directives (CE marking), European REACH Regulation.
- Standards IEC/EN 60309-1, IEC/EN 60309-4, IEC/EN 60947-3 (defining the breaking capacities for use categories AC-22 and AC-23).
- Standards UL 1682, UL 2682 (USA), CSA C22.2 No. 182.1-07 (Canada), GB/T 11918.1 (China).
- Certified by the following organisations: LCIE (France), UL (USA), VDE (Germany), TR CU (Russia), CSA (Canada), CQC (China), Bureau Veritas Marine, SGBP (Singapore).
- Ensures that electrical machines comply with the European Machinery Directive in respect of disconnecting switches and with EN 60204-1: Safety of Machinery - Electrical equipment of machines.
- Ensures that electrical installations comply with the decrees of 30 August 2010, 22 September 2010 and the decrees implementing the French Labour Code relating to health and safety at work when using electrical installations.
- Ensures that electrical installations comply with national regulations on worker protection in Belgium, Spain and Italy.
- Ensures electrical installations comply with IEC/HD 60364 and NF C 15-100 electrical installation standards.
