30 A – 500 V INDUSTRIAL PLUG & SOCKET-OUTLET- IP66/IP67 – IK09 – POLY/METAL

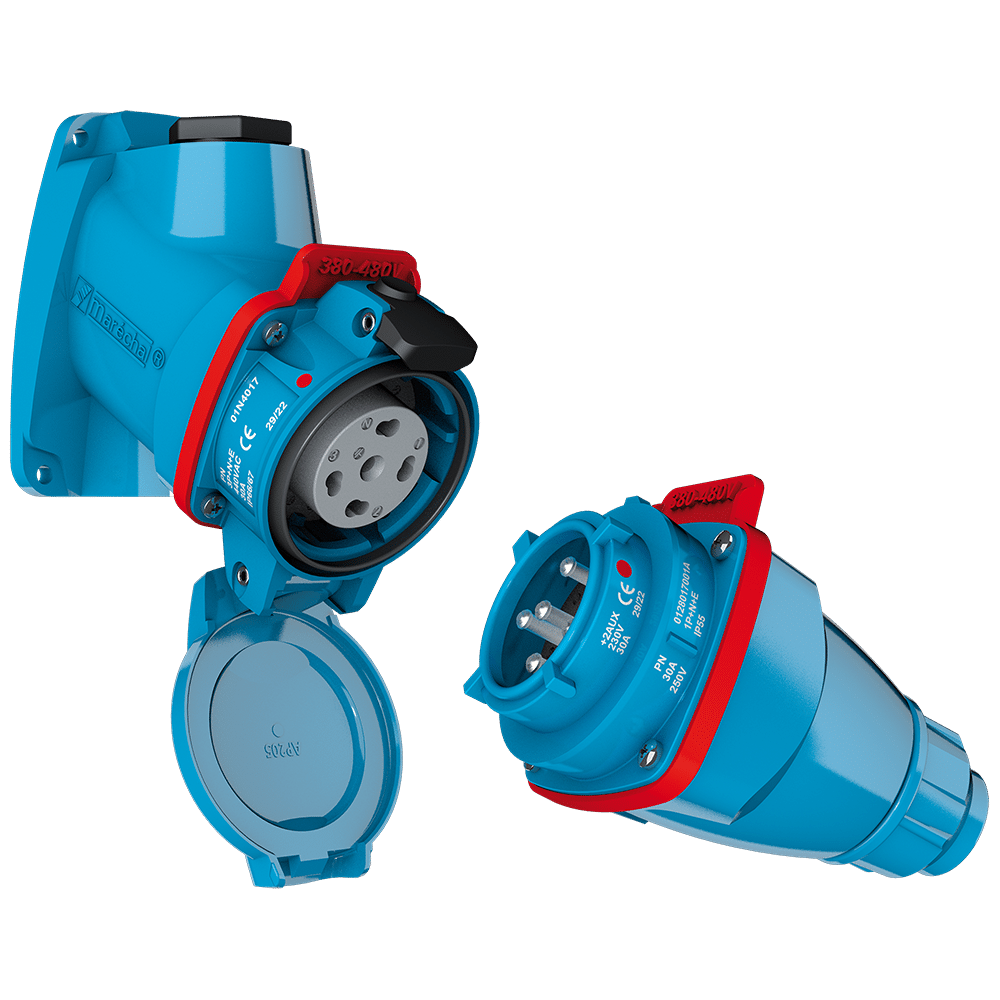

PN 30 A – 500 V watertight, compact and rugged industrial plug and socket-outlet: IP66/IP67, poly or metal housing IK09, electromagnetic compatibility (EMC). The MARECHAL® reference for harsh environments (moisture, corrosion, pollution).
Highlights
- Automatic IP66/IP67
- Poly or metal casing, IK09
- CEM (Metal)
- T °C : -40 °C / +60 °C
Characteristics
Download the catalogueStandards
- European Low Voltage and RoHS Directives (CE marking), European REACH Regulation.
- Standards IEC/EN 60309-1 and IEC/EN 60309-4 (essential requirements).
- Standards UL 1682 (USA) and CSA C22.2 N°182.1-07 (Canada).
- Certified by the following organisations: UL (USA), VDE (Germany), TR CU (Russia), CSA (Canada).
- Ensures that electrical machines comply with the European 'Machinery' Directive in respect of disconnecting switches.
- Ensures that electrical installations comply with national regulations on worker protection in Belgium, Spain and Italy.
- Ensures electrical installations comply with IEC/HD 60364 and NF C 15-100 electrical installation standards.
