CP../EFDCN..

CP../EFDCN..

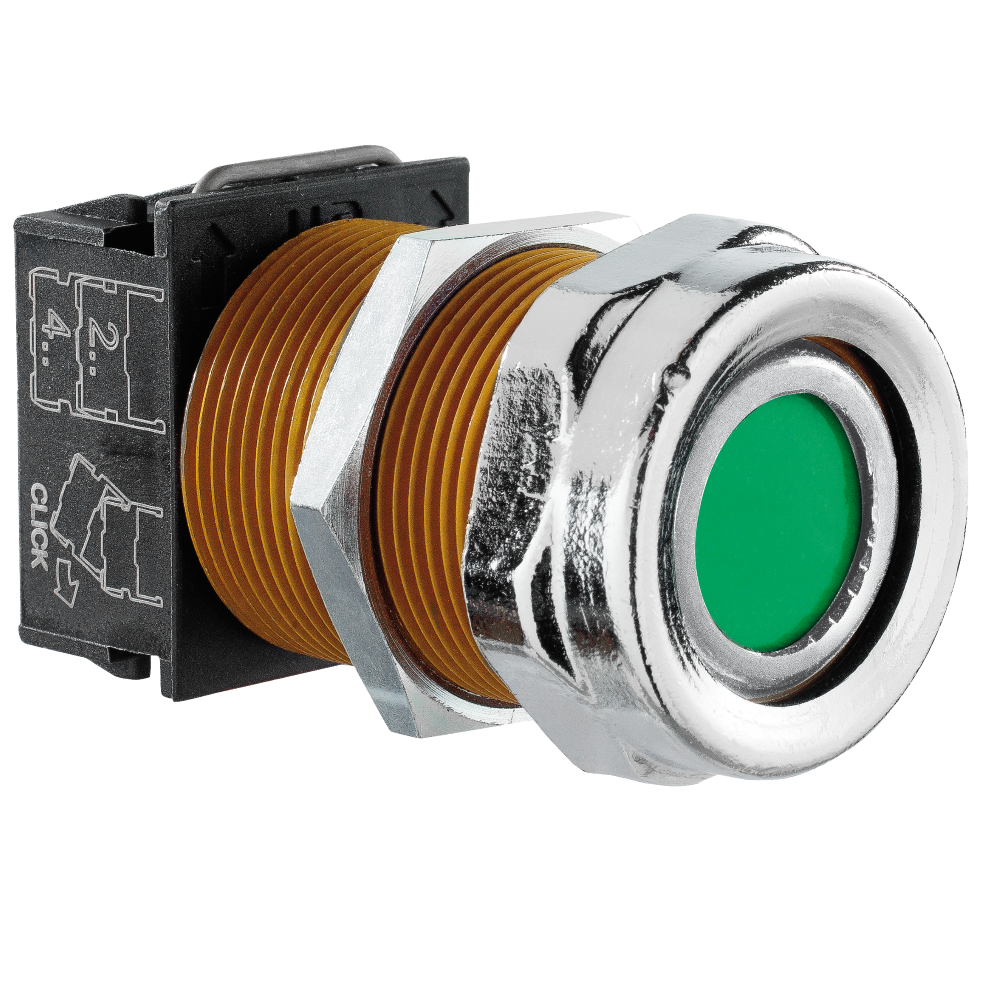

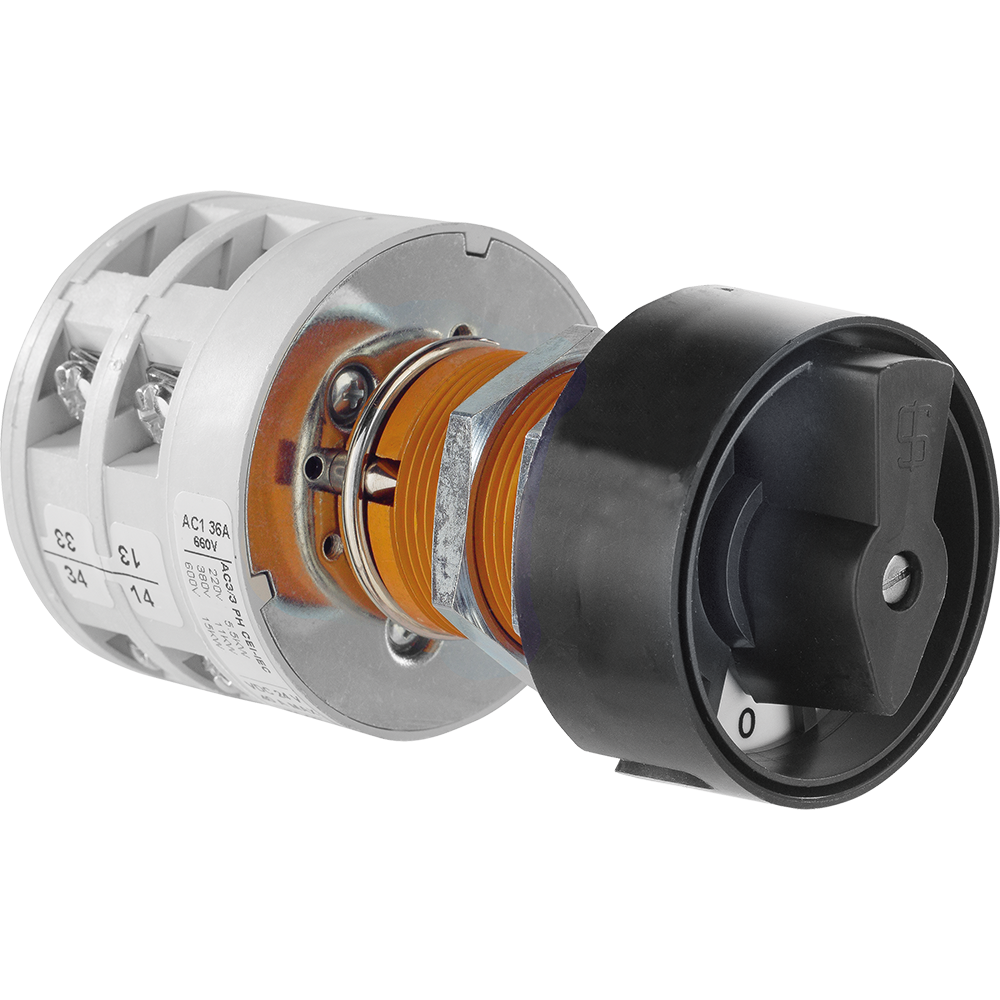

The CP../EFDCN.. range of control stations are based on the features of our CP../CPS.. enclosures, offer an Ex d IIC mode of protection and they can be equipped with different components (push button, selector switches, potentiometers, signal lamps, rotary handles, ammeters, voltmeters, etc.) Boxes are manufactured in aluminium with low content of copper and complete with threaded hubs suitable for cable glands or conduit, connection does not affect the internal void, which remains available for terminals wiring. Internal and external screws are made of AISI316 stainless steel.
This series is taylor made on the base of customer specification, including quantity and type of operators.
Based on the customer’s needs and certificate requirements, our technical department will advise and select the most suitable combination.
These boxes are suitable for hazardous areas of industrial plants for indoor and outdoor applications.

TECHNICAL FEATURES

Material

Aluminium with low content of copper

IP rating

IP66

Ambient temperature range
-50°C to +60°C (ATEX)
-60°C to +60°C (IECEx)

Approvals



Certified 03ATEX0009
IECEx BKI 15.0002
TR CU

Marking




II 2 GD
Ex d IIC T(*) Gb
Ex t IIIC T(*) Db IP66
* T6/T85°C, T5/T100°C, T4/T135°C

Surface treatment


Painted by green colour polyurethane painting cycle RAL6003 (other colour available upon request)

Thread

Metric pitch 1.5, ANSI B1.20.1 NPT, UNI-6125

Standard cetificate label

Made by self adhesive UV and corrosion resistant polyester, approved by certified Laboratory.

Accessories available upon request

Internal anticondensate painting
Traffolyte/Stainless steel certificate label
Hot deep galvanized steel or Stainless Steel AISI316 stand / canopy.
