HAZARDOUS AREA

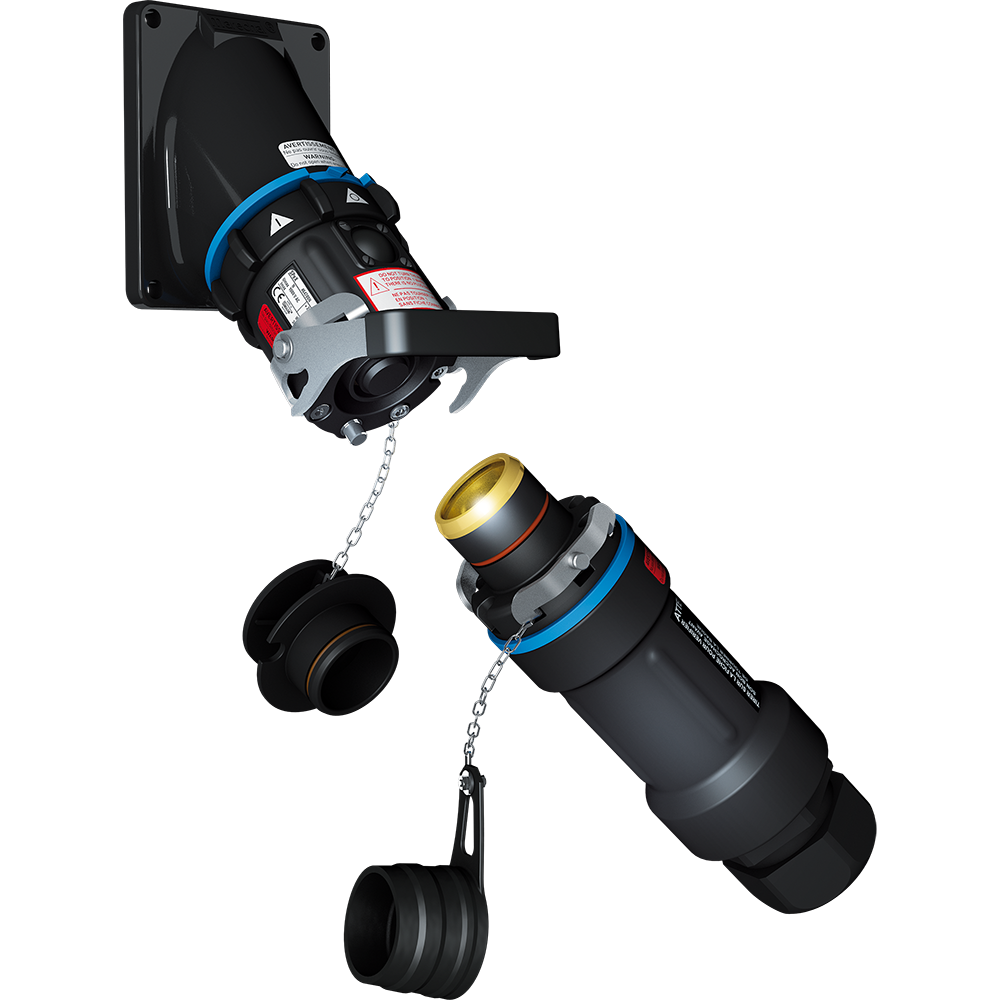

SINGLE-POLE CONNECTOR 680 A – 1000 V – IP66/IP67 – IK08 – POLY – Zone 1-21, 2-22
SPeX Zone 1-21, 2-22
SPeX is a safe, reliable single pole connector for high power applications with a high capacity to absorb frequent overcurrents up to 10*In. It is designed for use in potentially explosive atmospheres (zones 1, 2, 21, 22).
-
Highlights
- Ex II 2 G D Ex e IIC, Ex tb IIIC
- Automatic IP65/66
- T °C : -20 °C / +60 °C
-
Characteristics
Download the catalogue -
Standards
- European ATEX Directives (CE and Ex symbol marking), RoHS (CE marking), European REACH Regulation.
- Standards IEC EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7, IEC/EN 60079-31.
- Certified by the following organisations: LCIE (Europe: ATEX and International: IECEx) / NANIO (Russia: TR CU) / BUREAU VERITAS (Marine) / CSA (Canada, USA).
-
Downloads
Certificates
-
Certificate
SPeX - Certificate - BV Marine.pdf
Datasheets
-
Datasheet
SPeX - Technical Datasheet.pdf
General catalogues
-
General catalogue
MARECHAL SPeX Zone 1-21, 2-22 SINGLE POLE RANGE EN
Instruction sheets
-
Instruction sheet
SPeX_IS22B_Instructions
-
