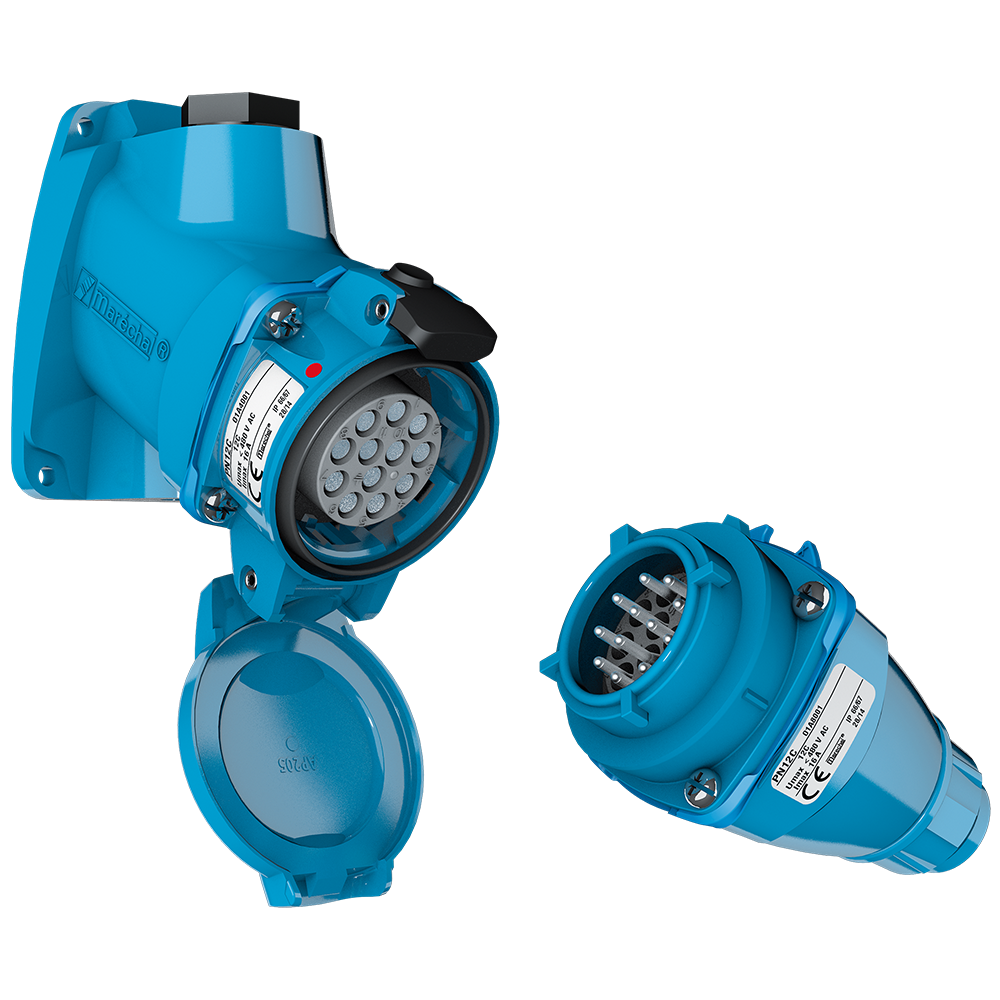

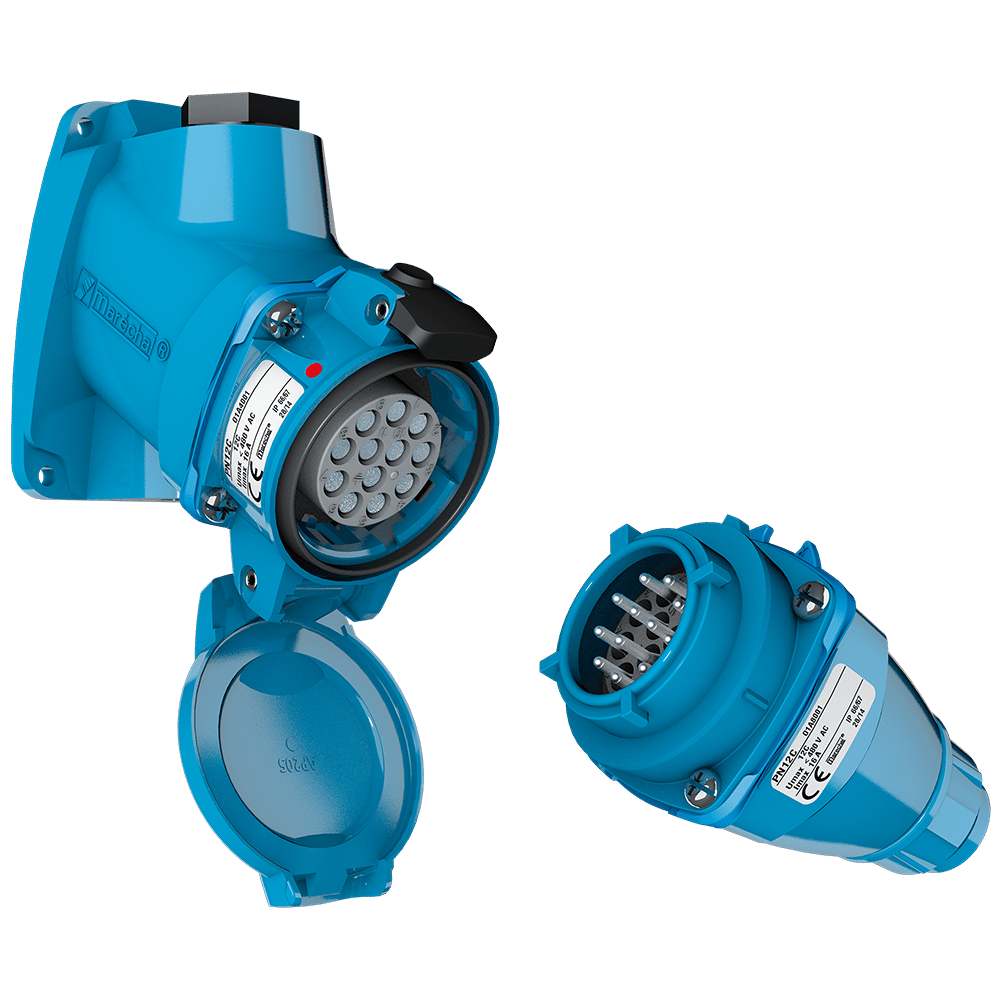

MULTICONTACT CONNECTORS 12 Contacts – 16 A – 480 V – IP66/IP67 – IK09 – POLY/ METAL

• Highlights

  • 12 contacts connector
  • Automatic IP66/IP67
  • Poly or metal casing, IK09
  • T °C : -40 °C / +60 °C

• Characteristics

  Download the catalogue

• Standards

  • European Low Voltage and RoHS Directives (CE marking), European REACH Regulation.
  • Standards IEC/EN 61984, UL 1682 (USA), CSA C22.2 N° 182.1 (Canada).
  • Certified by the following organisations TR CU (Russia)
  • Ensures that electrical machines comply with the European 'Machinery' Directive in respect of disconnecting switches.

• Downloads

  Datasheets

  •

    Datasheet



    Multi_PN - Technical Datasheet



  Declarations

  •

    Declaration



    PN12C - Declaration EU


  •

    Declaration



    PN12C-Declaration_UKCA



  Drawings

  •

    Drawing



    30D ANGLE ADAPTER POLY SIZE 1.DWG


  •

    Drawing



    30D ANGLE ADAPTER POLY SIZE 1.PDF



  General catalogues

  •

    General catalogue

    MARECHAL PN12C MULTICONTACT RANGE EN



  Instruction sheets

  •

    Instruction sheet



    Multi_DSN12C-24C-37C-PN12C_IS32B_Instructions
